APC Window-type Ventilation Fan

Product specification :

The wall mounted bathroom window fan with high-pressure tightness wind-proof louver, it can prevent the invasion of air or foreign matter from outside.   Adopts brand-new designed bended sweep inpeller and ball bearing motor , the fan offers more air volume , higher pressure and lower noise.   All of them are window wall mounted ventilation fans or ceiling mounted .

Unique Design , Persistent Ventilation Capability

Window direct-exhaust , need no duct

High - efficiency axial impeller

Low energy comsumption make 24 hours ventilation possible

Specification :

220V wall mounted bathroom window fan factory
Picture	Type	Model	Vol./Freq	Power	Air volume	Noise	Applicable area	Hole size	Fan size	Packing Qty
			(V/Hz)	(W)	(m3/h)	(dB)	(m²)	Φ(mm)	(inch)	(pcs/ carton)
	Square Series	APC10-F1	220/50	15	100	40	4~8	116	4	20
		APC15-F1		20	200	42	8~16	166	6	20
		APC20-F1		25	300	45	12~24	185	8	10
	Wafery Series	APC10-C1		15	100	40	/	103	4	20
		APC15-C1		20	200	42	/	153	6	18
		APC20-C1		25	300	45	/	187	8	18

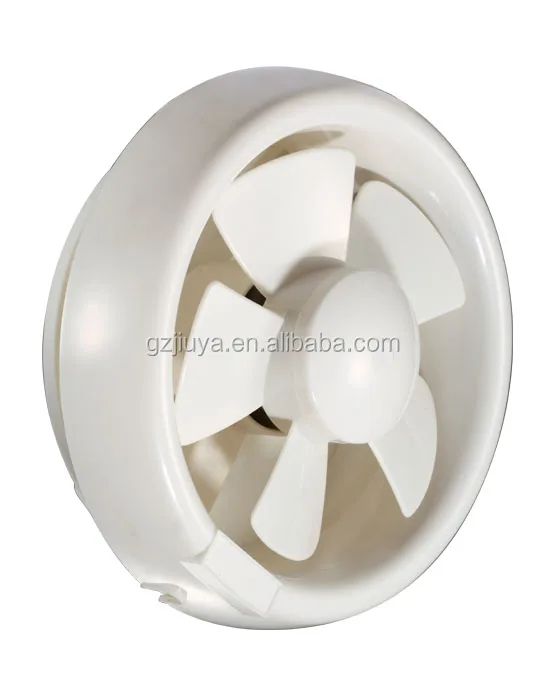

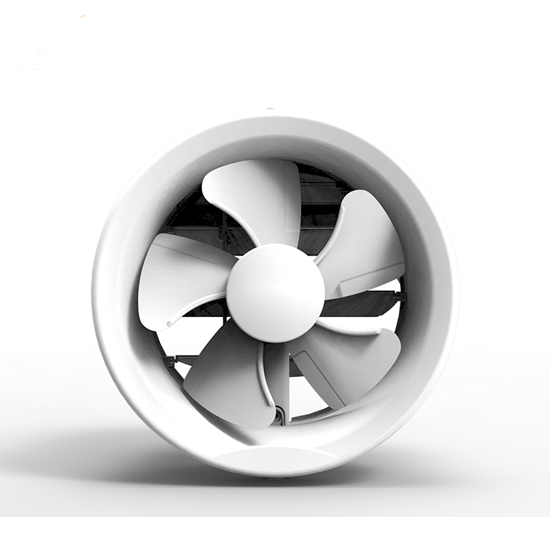

	Circular Series	APC15-Y1		15	200	40	8~16	187	6	12
	DC Type	APC15-Y1D		6	300	40		187	6	12
		APC20-Y1D		16	500	42		250	8	8
