Product introduction

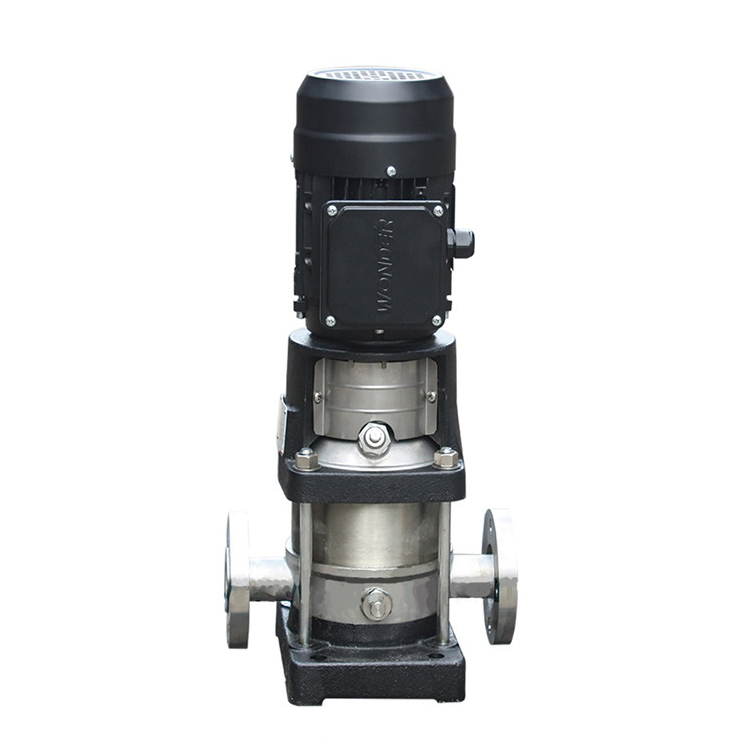

GL (GLF) series pumps are non self suction vertical multistage centrifugal pumps, which are equipped with standard motors and containerized mechanical seals.
Product features
GL (GLF) series pumps have the advantages of compact structure, light weight and beautiful noise.
1、Vertical structure, flange for import and export on the same central line, compact structure, small footprint, easy installation.
2、The use of containerized mechanical seals makes installation and maintenance safer and more convenient and ensures the reliability of seals.
3、The over flow parts are made of stainless steel without polluting the medium and ensuring long service life and beautiful appearance.
4、The motor shaft and the pump shaft are directly connected through the coupling, and the connection accuracy is high.
5、The noise is low and the vibration is small.
Technical parameter
Pumping medium：Thin, clean, non flammable and explosive liquids that do not contain solid particles or fibers.
Pump caliber：32~100mm
Flow：2-90m3/h
YangCheng：15-230m
Normal temperature：-15 ℃~70 ℃
High temperature：70 ℃~120 ℃
Application area
GL (GLF) pump is a versatile product that can be widely used in water and even industrial water, and the series of pumps can be used to change the temperature, flow, pressure, non corrosive and low corrosive liquids.
Water supply system: filtration and transmission of water to facilitate water supply to main pipes and tall buildings.
Industrial boost: applied to water supply flow system, clean water system, high pressure cleaning system and fire fighting system;
Industrial liquid transportation: cooling and air conditioning systems, boiler feed water and condensing systems, acids, bases and salts.
